MK GARAGE INC

CHROME HYDRAULIC CYLINDER FITTING 1PC / 06MJ-06MP 90 DEGREE ELBOW 1PC [NEW][CHROME FINISH]

CHROME HYDRAULIC CYLINDER FITTING 1PC / 06MJ-06MP 90 DEGREE ELBOW 1PC [NEW][CHROME FINISH]

$15.00 USD
$15.00 USD
Sale Sold out

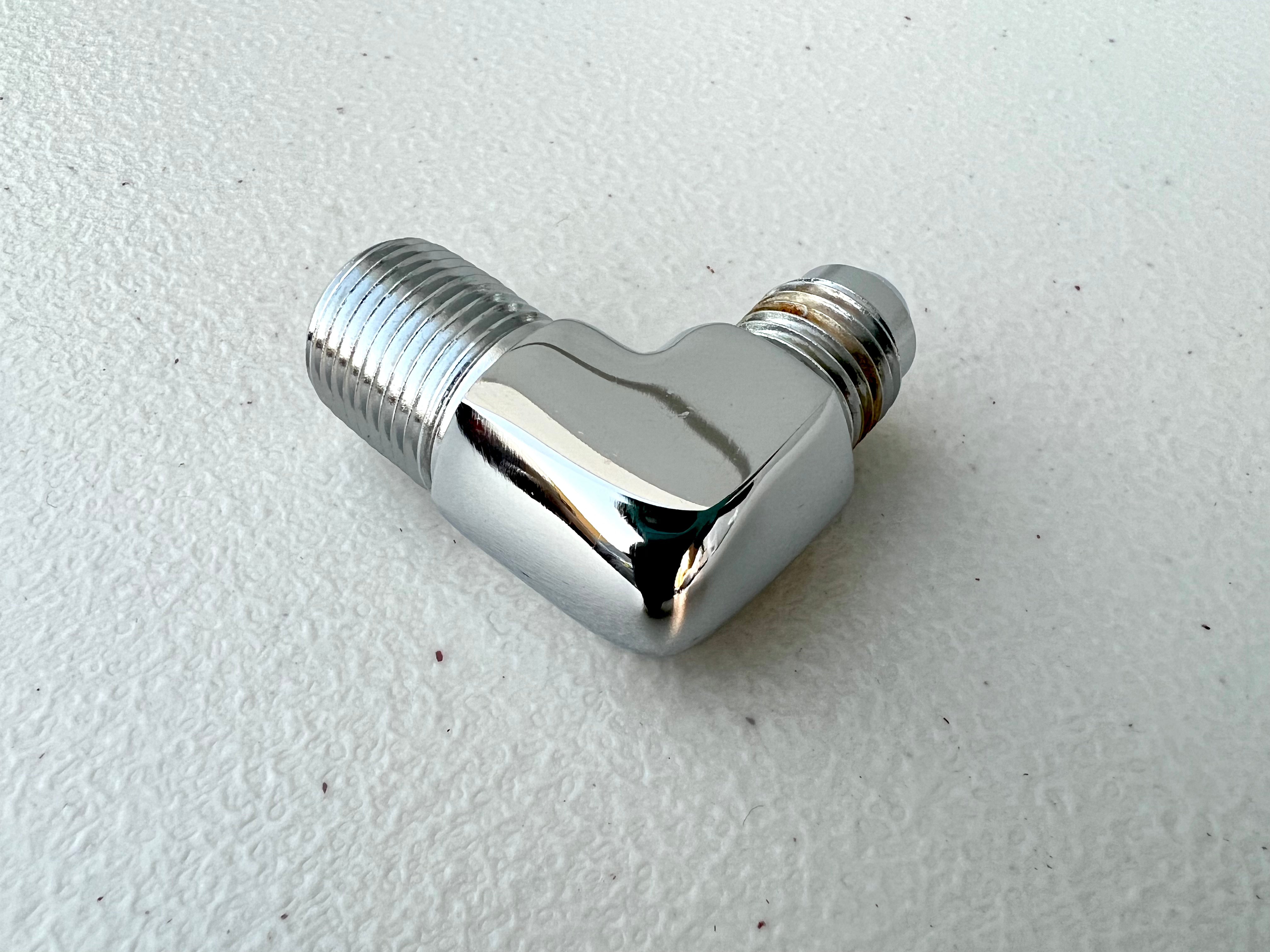

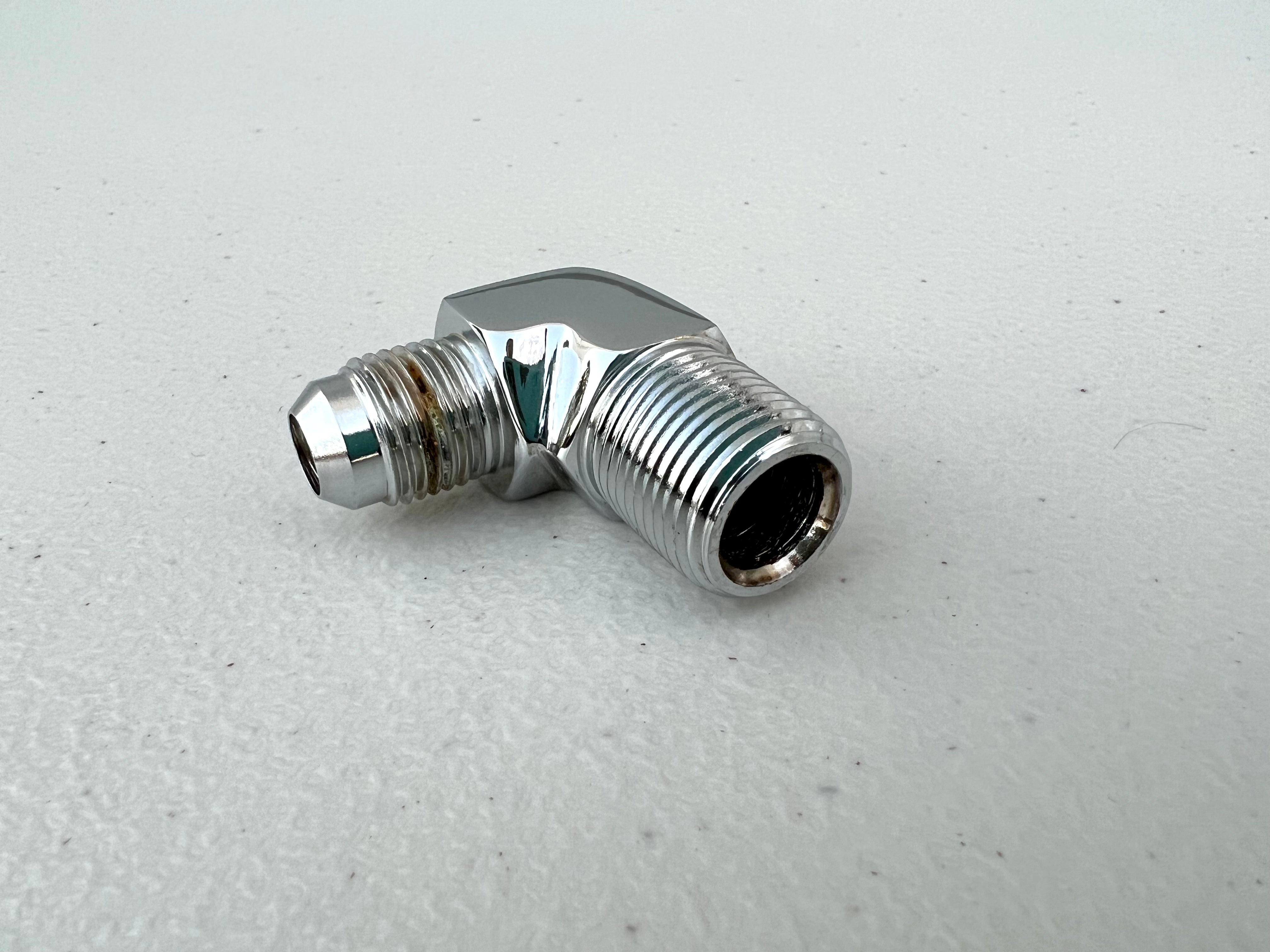

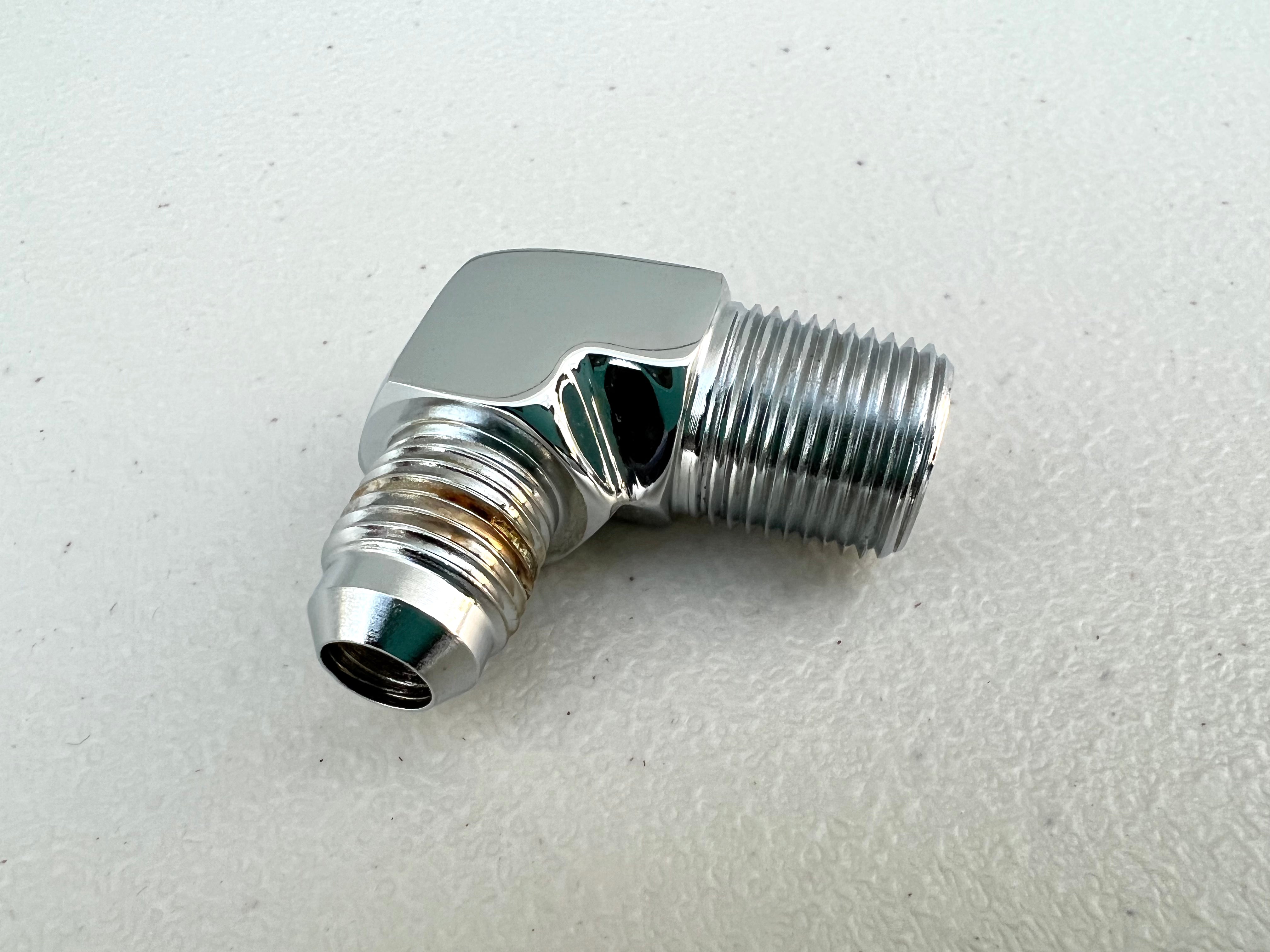

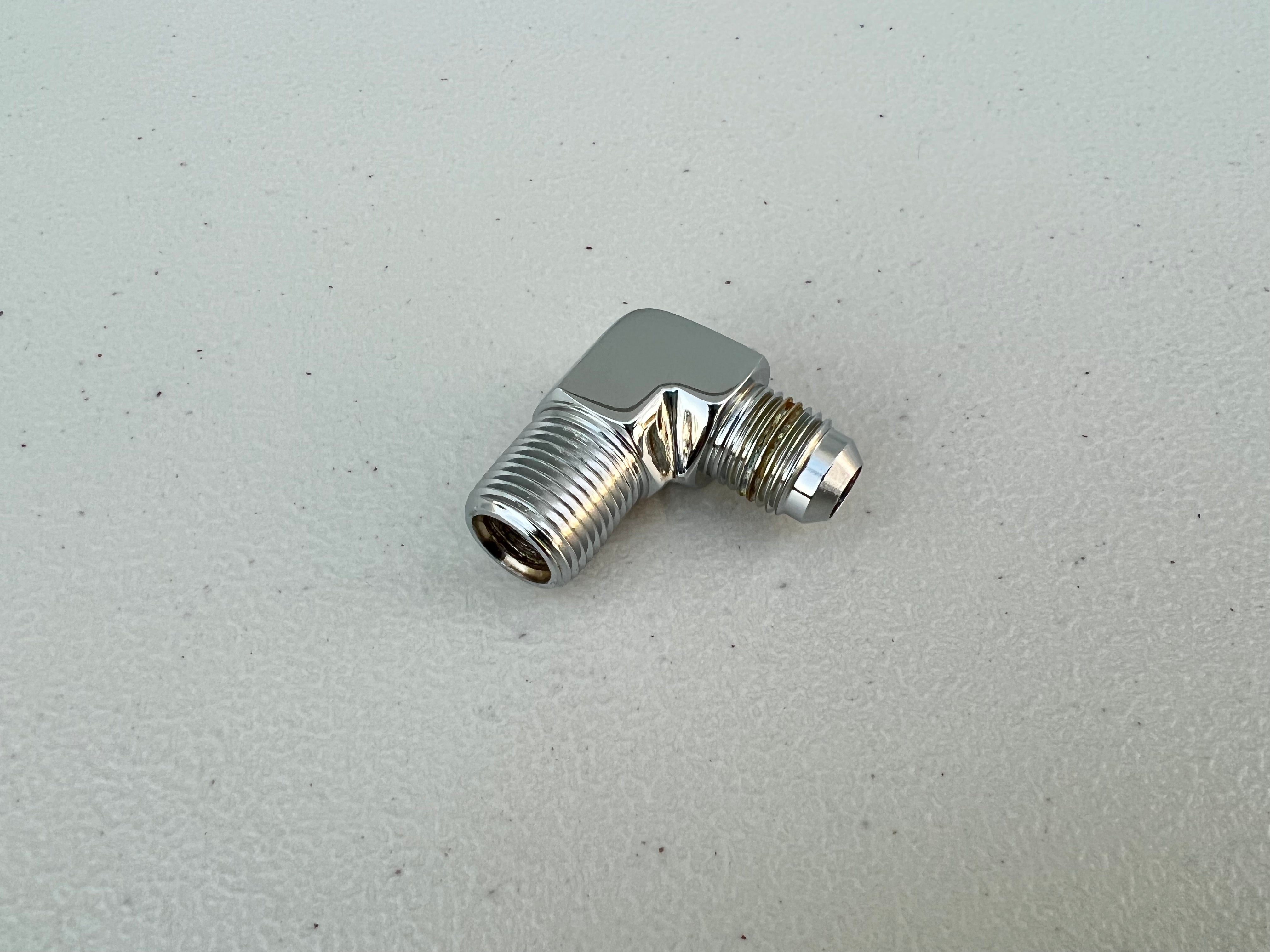

Chrome Hydraulic Cylinder Fitting / 06MJ-06MP 90Degree Elbow Fitting
1pc / Triple Chrome Plated

This is #6 MJ-MP 90 elbow fitting that you can use for hydraulic cylinder to #6 hose or fitting for Lowrider Hydraulic Pump.

** Product is SHOW QUALITY CHROME PLATED **

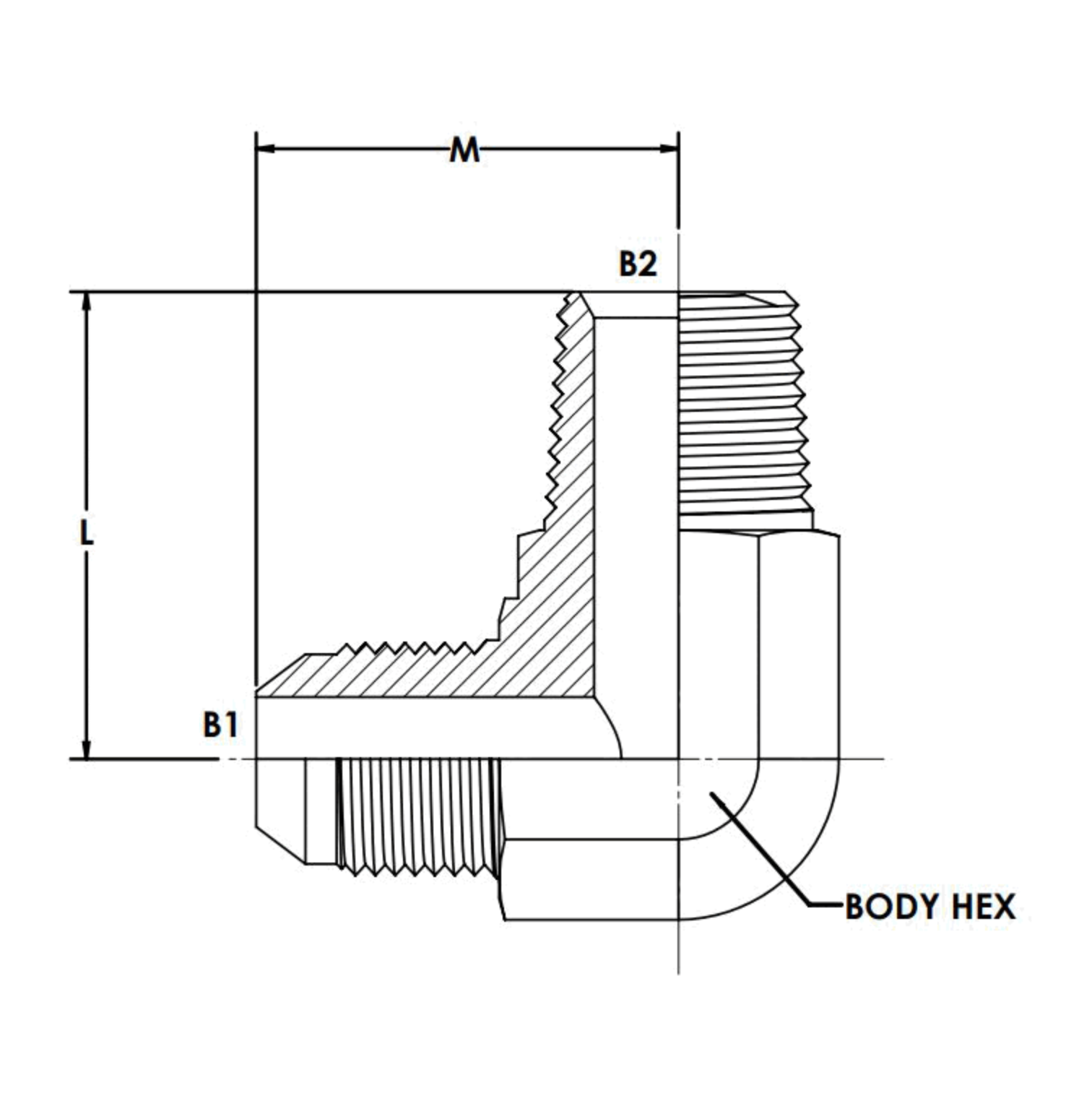

06MJ-06MP 90 ELBOW FORGED /  3/8 MJ X 3/8 MNPT 90° ELBOW

THREAD B1 TYPE MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE 9/16-18
THREAD B1 DRILL IN 0.297
THREAD B1 SPECIFICATION SAE J514
THREAD B2 TYPE MALE NPTF
THREAD B2 SIZE 3/8-18
THREAD B2 DRILL IN 0.406
THREAD B2 SPECIFICATION SAE J476
BODY HEX IN 0.750
OVERALL LENGTH L IN 1.220
CENTERLINE LENGTH M IN 1.140
SHAPE 90 DEGREE
BODY MATERIAL STEEL
RAW MATERIAL TYPE STEEL FORGING
PLATING TRIPLE CHROME PLATED
WEIGHT LBS 0.174
MAXIMUM DYNAMIC PRESSURE PSI 6,000



** ALL PARTS ARE NON REFUNDABLE AND NO RETURN **
** ALL SALES ARE FINAL **
